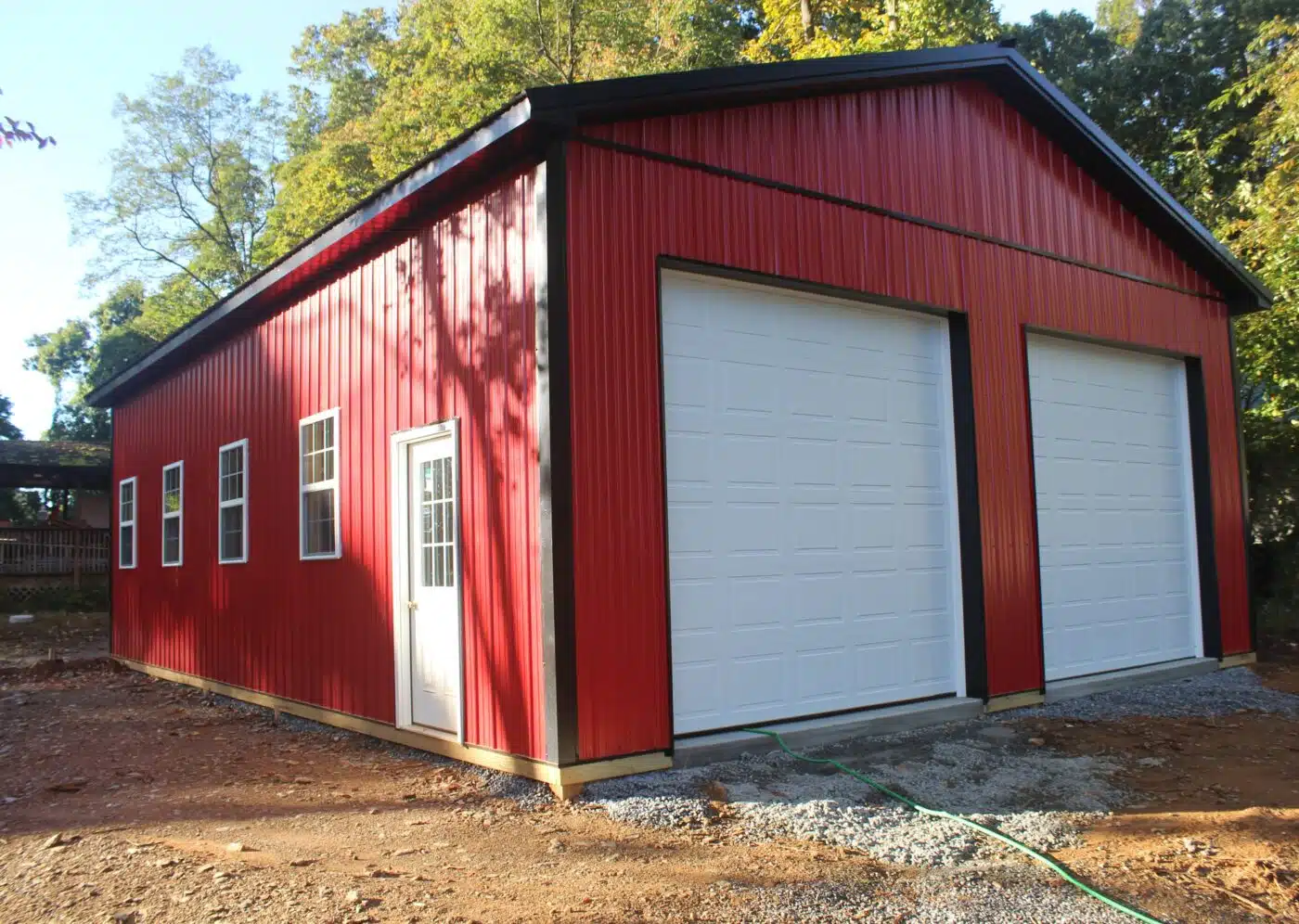

28×40 Garage Kit

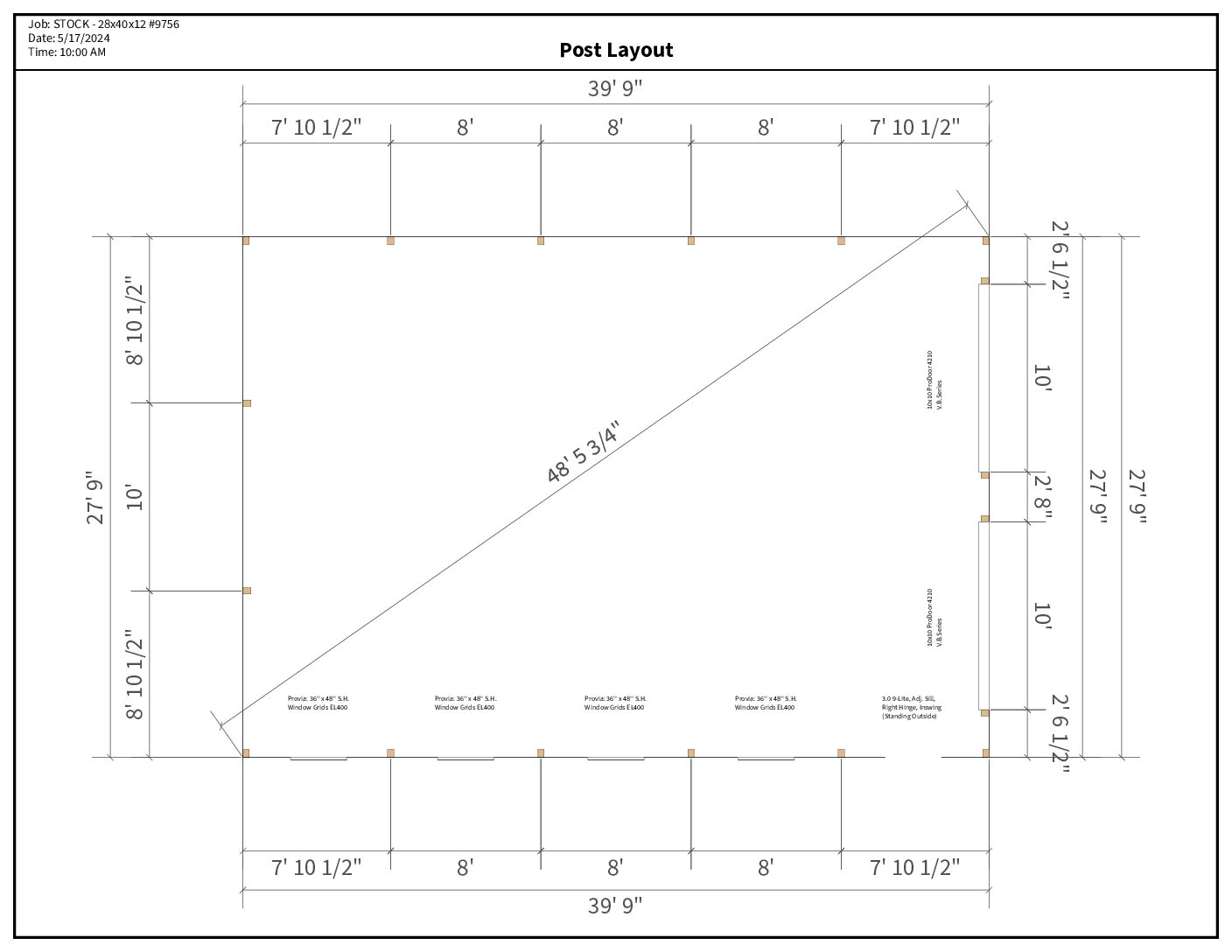

This garage kit includes all the materials required to build a 28-foot by 40-foot structure with 12-foot walls. The frame features 3-ply 2×6 glue-laminated posts spaced 8 feet on center. Each post is anchored with a 5×16 precast concrete footer block and one 80-pound bag of Sakrete for a stable, long-lasting foundation.

Structural support is provided by 2-ply 2×10 MSR truss bearers. The roof is constructed using pre-fabricated trusses spaced 48 inches on center, with a 4/12 pitch and designed to handle a 35-5-5 load rating for dependable strength in various conditions.

The building features 12-inch overhangs on both eaves and gables, equipped with vented metal soffit for improved airflow and long-term protection. The wall system includes 2×8 treated skirtboards and 2×4 purlins and girts spaced 24 inches on center for structural integrity.

The exterior is finished with Everlast 27-gauge OMNI Series metal roofing and siding, delivering durable weather protection and modern appearance. A Therma Guard R-9 vapor barrier is installed beneath the roof to assist with insulation and moisture control.

Additional components include vented closures under the ridge cap and foam closure strips at the eaves. All trim pieces are painted steel and color-matched, including the ridge cap, rake and corner trim, base angle, gutter apron, overhead door trim, and double angle trim at the gables.

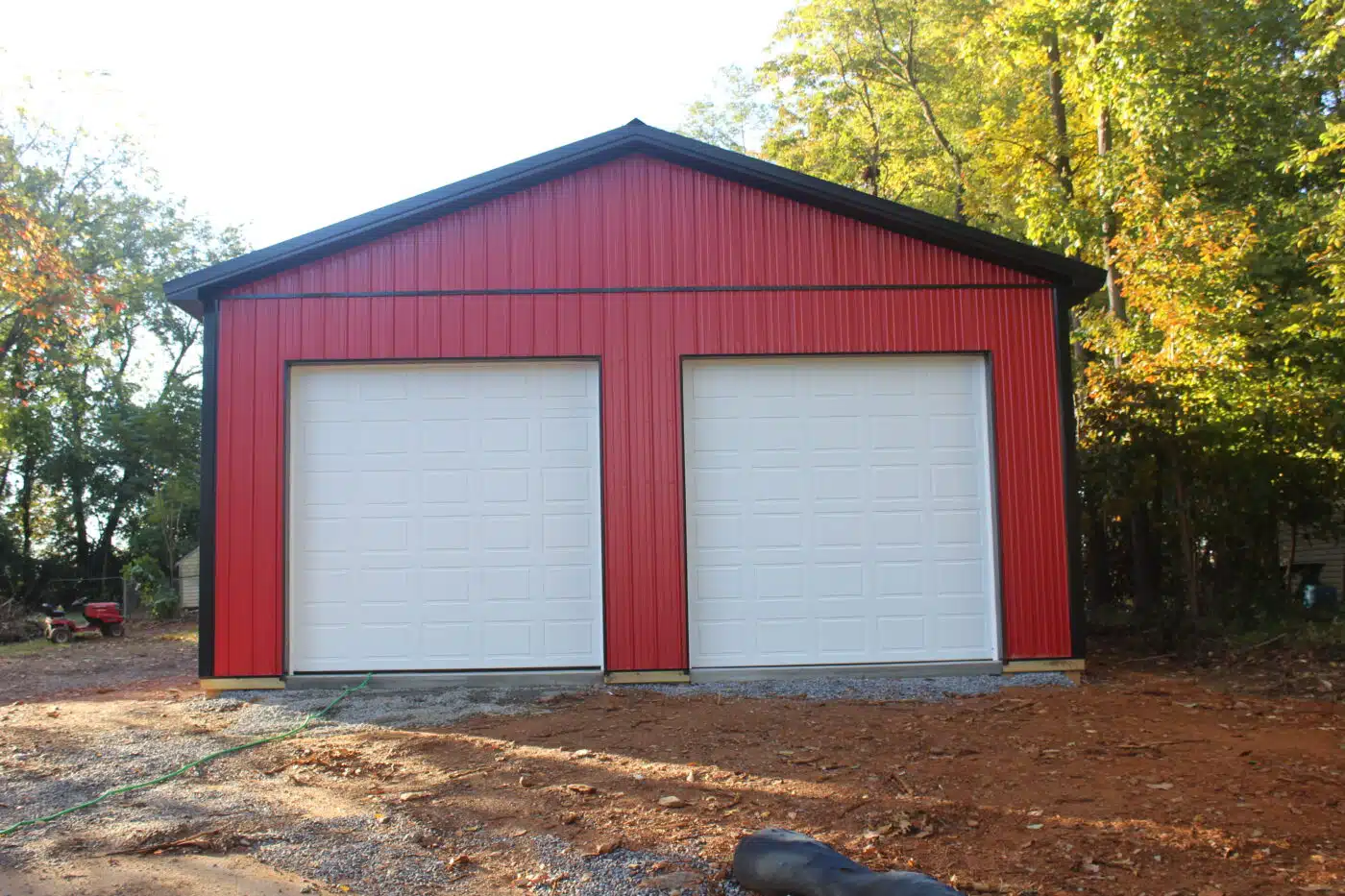

This kit includes two 10′ x 10′ ProDoor 4210 overhead doors. Each door is R-6.8 insulated with a white vinyl back, raised panel wood grain finish, torsion springs, standard track, weather stripping, steel angle reinforcement, and a slide lock for secure operation.

Access is provided by one 3.0 x 6.8 fiberglass entry door with a 9-lite window and black, keyed entry knob. The building also features four 36” x 48” white vinyl single-hung windows, allowing for natural light and ventilation.

All hardware is included, including 4” GRK structural screws for headers and color-matched screws for both roofing and siding, ensuring a seamless and professional-quality installation.
